LINDYケーブル・アダプター

Cromo Line DisplayPort 1.4 ケーブル

DisplayPort ケーブル

LINDY
DisplayPort 1.4
伝送速度:32.4Gbps
- 7680x4320@60Hz (4:2:2/8bit)
- 3840x2160@144Hz (4:4:4/8bit)
0.5m / 1m / 2m

Cromo Line DisplayPort 1.4 ケーブル : 特徴 | 仕様 | 製品画像 | ラインナップ

特徴

*. このDisplayPortケーブル製品の第20ピンには電力が通っていませんので、安心してご使用ください

仕様

シリーズ Cromo Line (DisplayPort 1.4 ケーブル)
型番 36300:0.5m
36301:1m
36302:2m
メーカー LINDY
タイプ DisplayPort ケーブル
ビデオ帯域幅 32.4Gbps
DisplayPort DisplayPort 1.4
最大解像度 7680x4320@60Hz(4:2:2/8bit), 3840x2160@144Hz(4:4:4/8bit)

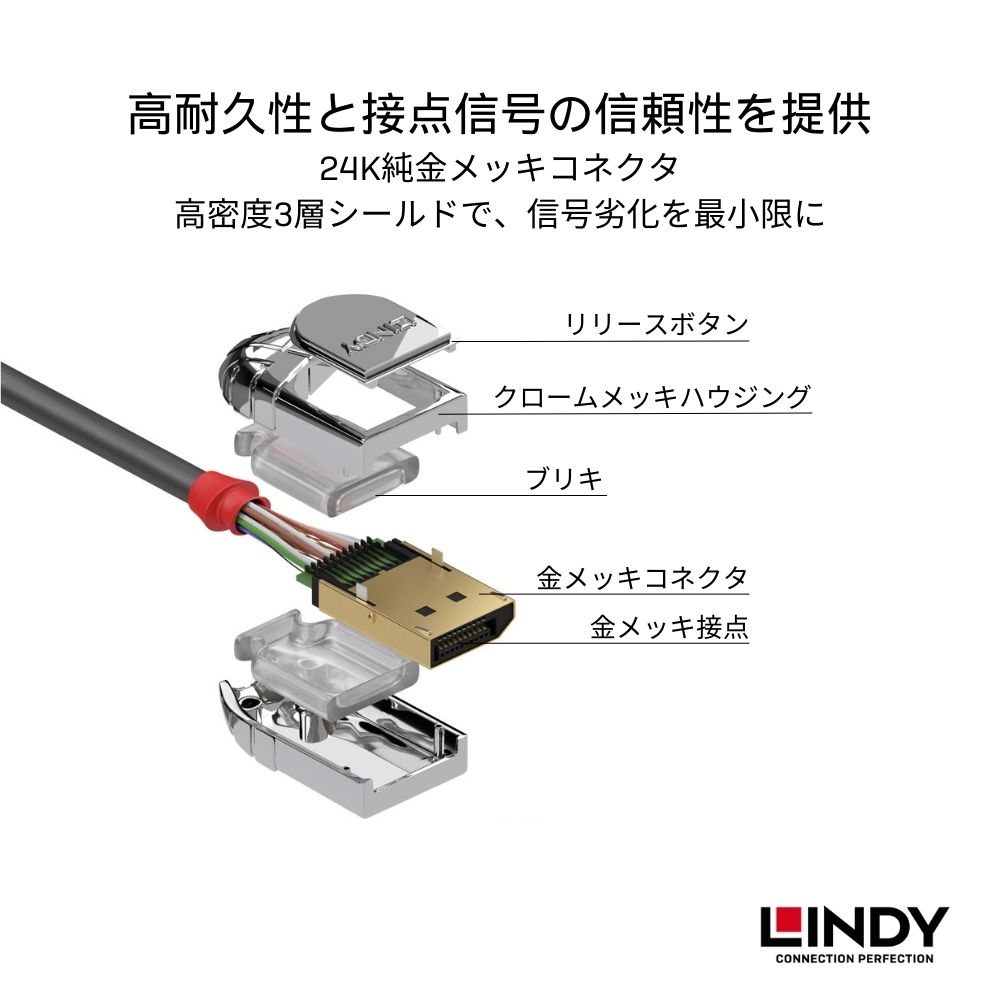

コネクタ
コネクタ DisplayPort オス (両端)
ハウジング クロームメッキABS
コネクタ材 金メッキ 3µ
コネクタピン リン青銅, 金メッキ 15µ
寸法 (mm) 19.7(W) x 38.9(D) x 12(H)
ケーブル
ケーブル色 グレー
ケーブル形状 ラウンドケーブル
線径 7.3mm
カバー素材 PVC
導体材料 錫メッキ銅
線材規格 28AWG
遮蔽層 銅編組シールド (カバー率85%)
曲げ半径 73 mm
環境
動作温度 -20℃~80℃
保存温度 -25℃~85℃
適合規格 RoHS, REACH, UL

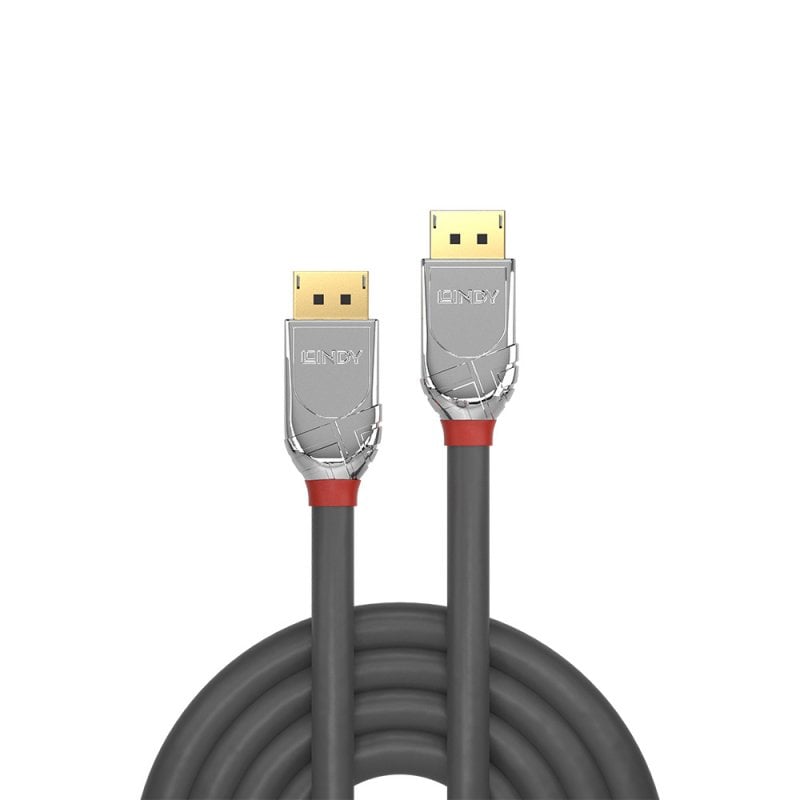

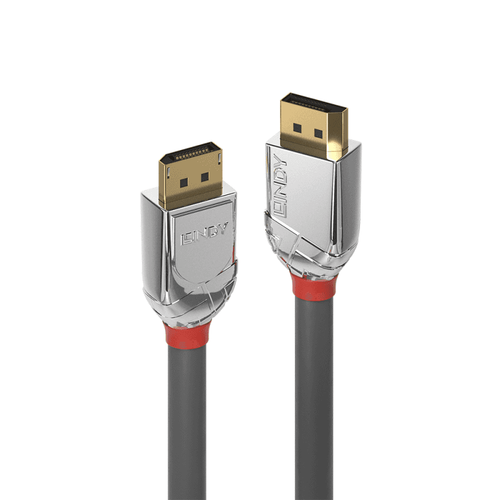

製品画像

大きい画像


ラインナップ

Cromo Line DisplayPort 1.4 ケーブル
Cromo Line DisplayPort 1.4 0.5m [0.5m] [32.4Gbps] [DisplayPort1.4] (型番:36300) お問合せ
Cromo Line DisplayPort 1.4 1m [1m] [32.4Gbps] [DisplayPort1.4] (型番:36301) お問合せ
Cromo Line DisplayPort 1.4 2m [2m] [32.4Gbps] [DisplayPort1.4] (型番:36302) お問合せ
Cromo Line DisplayPort 1.2 3m [3m] [21.6Gbps] [DisplayPort1.2] (型番:36303) お問合せ
Cromo Line DisplayPort 1.2 5m [5m] [21.6Gbps] [DisplayPort1.2] (型番:36304) お問合せ
