LINDYケーブル・アダプター

Gold Line DisplayPort 1.4 ケーブル

DisplayPort ケーブル

LINDY
DisplayPort 1.4 ATC 認証取得
伝送速度:32.4Gbps
- 7680x4320@60Hz (4:2:2/8bit)
- 3840x2160@144Hz (4:4:4/8bit)
0.5m / 1m / 2m / 3m

Gold Line DisplayPort 1.4 ケーブル : 特徴 | 仕様 | 製品画像 | ラインナップ

特徴

*. このDisplayPortケーブル製品の第20ピンには電力が通っていませんので、安心してご使用ください

仕様

シリーズ Gold Line (DisplayPort 1.4 ケーブル)
型番 36290:0.5m
36291:1m
36292:2m
36293:3m
メーカー LINDY
タイプ DisplayPort ケーブル
ビデオ帯域幅 32.4Gbps
DisplayPort DisplayPort 1.4
最大解像度 7680x4320@60Hz(4:2:2/8bit), 3840x2160@144Hz(4:4:4/8bit)

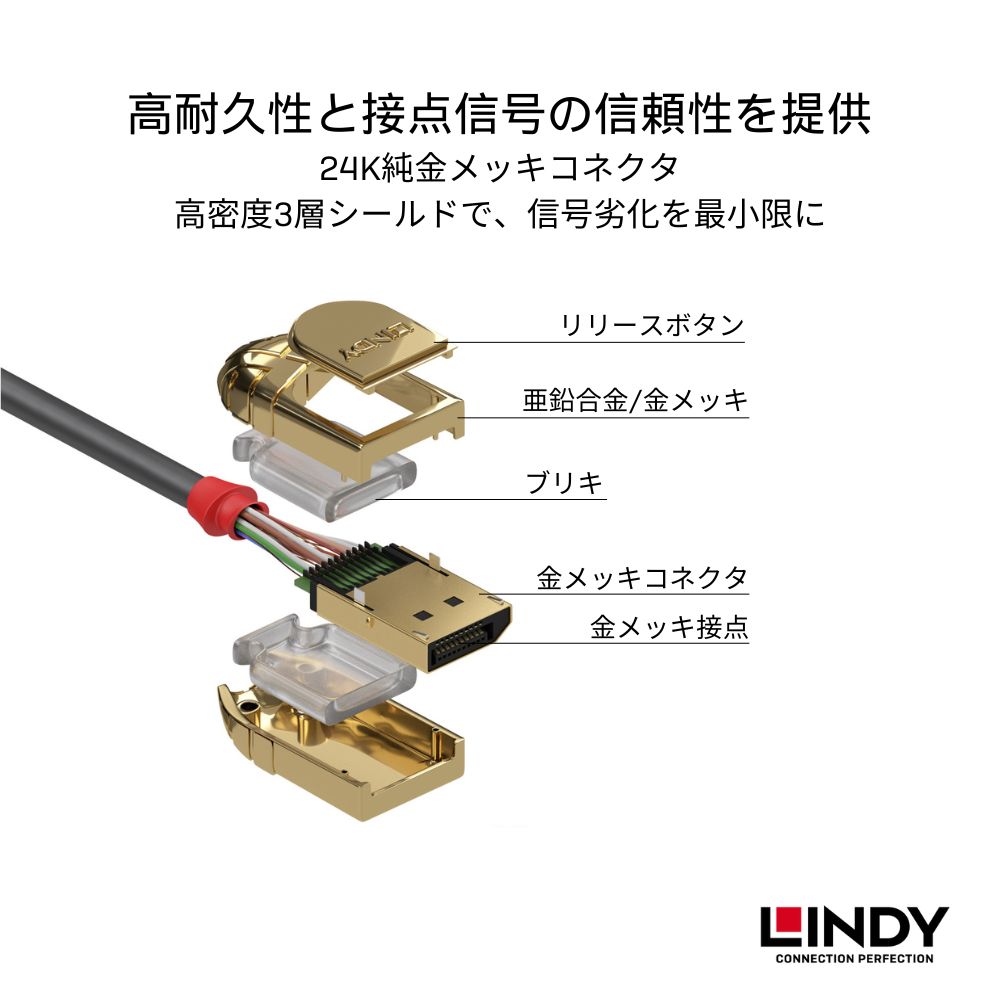

コネクタ
コネクタ DisplayPort Type A オス (両端)
ハウジング 24K金メッキ亜鉛合金
コネクタ材 金メッキ 3µ
コネクタピン リン青銅, 金メッキ 15µ
寸法 (mm) 19.8(W) x 42.5(D) x 12.5(H)
ケーブル
ケーブル色 グレー
ケーブル形状 ラウンドケーブル
線径 9.0mm
カバー素材 PVC
導体材料 C1020 (無酸素銅)
線材規格 24AWG
遮蔽層 銅編組シールド (カバー率85%)
曲げ半径 90 mm
環境
動作温度 -20℃~80℃
保存温度 -25℃~85℃
適合規格 RoHS, REACH, UL

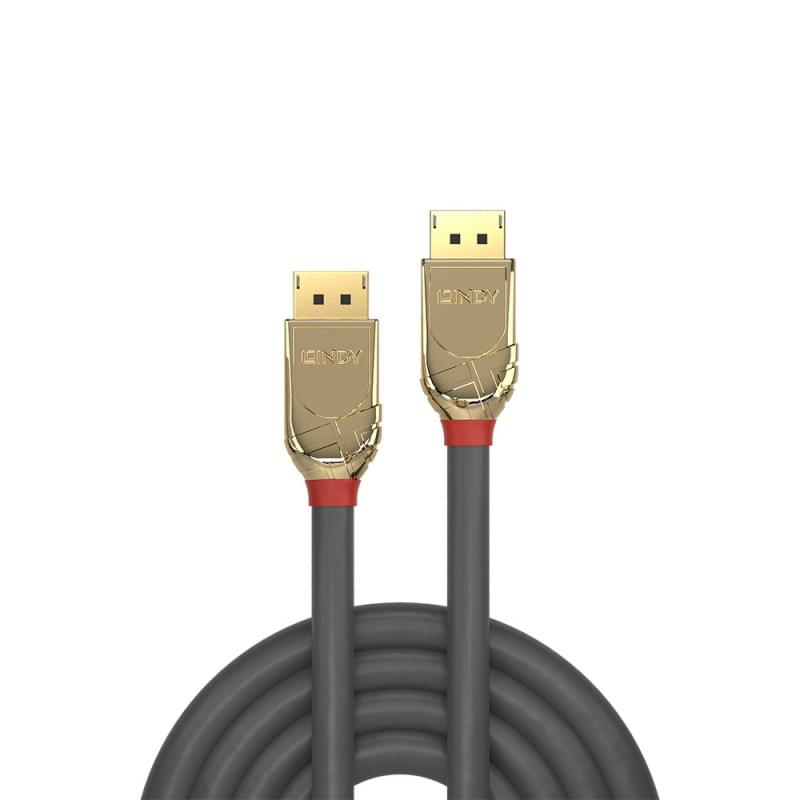

製品画像

大きい画像


ラインナップ

Gold Line DisplayPort 1.4 ケーブル
Gold Line DisplayPort 1.4 0.5m [0.5m] [32.4Gbps] [DisplayPort1.4認証取得] (型番:36290) お問合せ
Gold Line DisplayPort 1.4 1m [1m] [32.4Gbps] [DisplayPort1.4認証取得] (型番:36291) お問合せ
Gold Line DisplayPort 1.4 2m [2m] [32.4Gbps] [DisplayPort1.4認証取得] (型番:36292) お問合せ
Gold Line DisplayPort 1.4 3m [3m] [32.4Gbps] [DisplayPort1.4認証取得] (型番:36293) お問合せ
Gold Line DisplayPort 1.2 5m [5m] [21.6Gbps] [DisplayPort1.2] (型番:36294) お問合せ
Gold Line DisplayPort 1.2 7.5m [7.5m] [21.6Gbps] [DisplayPort1.2] (型番:36295) お問合せ
Gold Line DisplayPort 1.2 10m [10m] [21.6Gbps] [DisplayPort1.2] (型番:36296) お問合せ
Gold Line DisplayPort 1.2 15m [15m] [10.2Gbps] [DisplayPort1.1] (型番:36297) お問合せ
Gold Line DisplayPort 1.2 20m [20m] [10.2Gbps] [DisplayPort1.1] (型番:36298) お問合せ
